Power Take Off

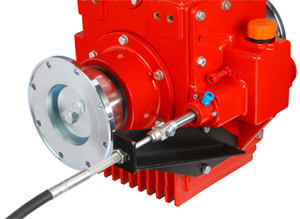

This specially designed FIREHAWK P.T.O. is perfect for modern age fire engines to transmit high power & high torque. Installed in a midship position between the truck transmission and & the rear axle. The sliding gear is positioned by a manual or air powered shift mechanism.

Available in four different ratios (1:1.17, 1:1.31, 1:1.48, 1.1.62).

Specifications :


Technical Data Sheet for PTO

1.
Gear Case: made of high strength aluminum alloy making the PTO lighter (92.5 kgs approx) yet durable, which makes mounting/maintenance job much easier
2.
Gears: Helical gears; made from special alloy steel, carburized, are hardened and ground.
3.
Bearings: Oil lubricated oversized bearings make the P.T.O. stronger, silent in operation & operate at low temperature.
4.
Ratios : Available in four different ratios (1:1.17, 1:1.31, 1:1.48, 1.1.62)
5.
Centre Distance : Increased centre height offers ease of installation of drive line components.
6.
Torque : Designed to transfer
a) Road shaft torque of 10,000 Nm and
b) Pump shaft torque of 1000 Nm.
7.
Cooling Mechanism : Inbuilt water cooling system is provided for continuous operations. Sufficient fins are provided on PTO body for cooling while operating on road.
8.
Oil Seals : High quality double lip oil seals provided with dust guards offer virtually leak proof operations for extended periods, no frequent oil level check up is necessary.
9.
Gear Shifting mechanism:
a) Automatic pneumatic self locking gear shift as standard.(Air power allows the operator to shift from road or pump position by actuating a single button. Illuminated signal indicates completion of shift from road to pump.)

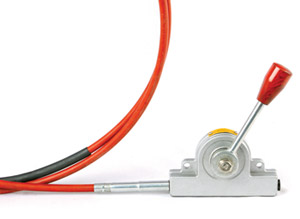

b) Manual gear shift mechanism available as option is supplied with flexible control lever assembly. This makes fitment of control lever very flexible and easy in the driver’s cab, especially with vehicles having tilting cabs.
  C) Combained air controlled with manual over ride gear shifting mechanism also available.
10.
Front and rear bearing/bearing caps can be easily removed without removing the gear box from the vehicle; so reduced break down time
11.
Flanges to suit any requirements are available.
12.
Sufficient mounting pads are provided to suit mounting on any chassis.

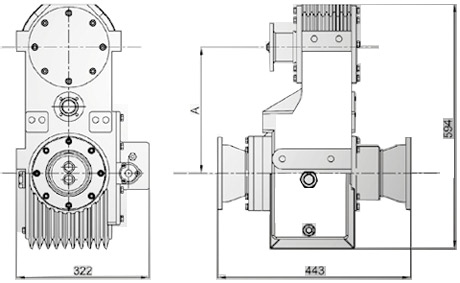

 Overall Dimensions of PTO :-

Overall Dimensions of PTO Power Take Off For Fire Tenders, Fire Hawk PTO

Model Number Ratio Centre Distance (A)
FM 11 1:1.17 313.0 mm
FM 13 1 : 1.31 306.3 mm
FM 14 1 : 1.48 299.6 mm
FM 16 1 : 1.62 297.2 mm


Downloads For Power Take Off :

Power Take Off
Power Take Off, Fire Hawk Power Take Off ( PTO ), Power Take Off For Fire Tenders




Power Take Off ( FM Series)

Power Take Off, Power Take Off ( FM Series) Downloads For Power Take Off
( FM Series )

Power Take Off ( FM Series)

Key Features
• "FM Series FireHawk" split shaft inline power take off are perfectly designed to transmit power & torque upto 300 HP vehicles.
• Installed in midship position between the truck transmission and & the rear axle.
• Throughput Torque Capacity - 10,000 Nm
• Output Shaft Torque - 700 to 1000 Nm
• Weight - 92.5 kg
• Available Ratios

Available in four different ratios (1:1.17, 1:1.31, 1:1.48, 1.1.62).

*Other rations can also be made available on request.

Enquiry form

Specifications :

Technical Data Sheet for PTO ( FM Series )

1.
Gear case:- Made of high strength aluminum alloy making the PTO lighter (92.5 kgs approx) yet durable, which makes mounting/maintenance job much easier
2.
Gears: Helical gears; made from special alloy steel, carburized, are hardened and ground.
3.
Bearings: Oil lubricated oversized bearings make the P.T.O. stronger, silent in operation & operates at low temperature.
4.
Ratios: Available in four different ratios (1:1.17, 1:1.31, 1:1.48 & 1:1.62). Other ratios available on request.
5.
Torque: Designed to transfer
  a) Road shaft torque of 10,000 Nm and b) Pump shaft torque of 700 to 1000 Nm.
6.
Cooling mechanism: Inbuilt water cooling system is provided for continuous operations. Sufficient fins are provided on PTO body for cooling while operating on road.
7.
Oil Seals: High quality double lip oil seals provided with dust guards offer virtually leak proof operations for extended periods, no frequent oil level check up is necessary.
8.
Gear Shifting mechanism:
  a) Automatic pneumatic self locking gear shift as standard.
( Air power allows the operator to shift from road or pump position by actuating a single button. Illuminated signal indicates completion of shift from road to pump.)
b) Manual gear shift mechanism available as option is supplied with flexible control lever assembly.
This makes fitment of control lever very flexible and easy in the driver’s cab, especially with vehicles having tilting cabs.
9.
Front and rear bearing/bearing caps can be easily removed without removing the gear box from the vehicle; so reduced break down time
10.
Flanges to suit any requirements are available.
11.
Sufficient mounting pads are provided to suit mounting on any chassis.
* The right of technical modifications & improvement without prior notice is reserved.

 Overall Dimensions of FM PTO :-

Overall Dimensions of FM PTO, Fire Hawk PTO

LModel Number
LRatio
LCentre Distance (A)
LFM 11
L1:1.17
L313.0 mm
LFM 13
L1 : 1.31
L306.3 mm
LFM 14
L1 : 1.48
L299.6 mm
LFM 16
L1 : 1.62
L297.2 mm




Power Take Off (LM Series)

Power Take Off, LM Series Downloads For Power Take Off
( LM Series )

Power Take Off (LM Series)

Key Features
• "LM Series FireHawk" split shaft inline power take off are perfectly designed to transmit power & torque upto 160 HP vehicles.
• Installed in midship position between the truck transmission and & the rear axle.
• Throughput Torque Capacity - 6,600 Nm
• Output Shaft Torque - 700 to 1000 Nm
• Weight - 70 kg
• Available Ratios - 1:1.33 & 1:1.48

*Other rations can also be made available on request.


Enquiry form

Specifications :

Technical Data Sheet for PTO ( LM Series )

1.
Gear case:- Made of high strength aluminum alloy making the PTO lighter (70 kgs approx) yet durable, which makes mounting/maintenance job much easier
2.
Gears: Helical gears; made from special alloy steel, carburized, are hardened and ground.
3.
Bearings: Oil lubricated oversized bearings make the P.T.O. stronger, silent in operation & operates at low temperature.
4.
Ratios: Available in four different ratios (1:1.33 & 1:1.48). Other ratios available on request.
5.
Torque: Designed to transfer
  a) Road shaft torque of 6,600 Nm and b) Pump shaft torque of 700 to 1000 Nm.
6.
Cooling mechanism: Inbuilt water cooling system is provided for continuous operations. Sufficient fins are provided on PTO body for cooling while operating on road.
7.
Oil Seals: High quality double lip oil seals provided with dust guards offer virtually leak proof operations for extended periods, no frequent oil level check up is necessary.
8.
Gear Shifting mechanism:
  a) Automatic pneumatic self locking gear shift as standard.
(Air power allows the operator to shift from road or pump position by actuating a single button. Illuminated signal indicates completion of shift from road to pump.)
b) Manual gear shift mechanism available as option is supplied with flexible control lever assembly.
This makes fitment of control lever very flexible and easy in the driver's cab, especially with vehicles having tilting cabs.
9.
Front and rear bearing/bearing caps can be easily removed without removing the gear box from the vehicle; so reduced break down time
10.
Flanges to suit any requirements are available.
11.
Sufficient mounting pads are provided to suit mounting on any chassis.
* The right of technical modifications & improvement without prior notice is reserved.
* The right of technical modifications & improvement without prior notice is reserved.

 Overall Dimensions of LM PTO :-

Overall Dimensions of FM PTO, Fire Hawk PTO

MODEL NUMBER
RATIO
CENTRE DISTANCE (A)
LM 33
1:1.33
243.71 mm
LM 48
1:1.48
239.39 mm
